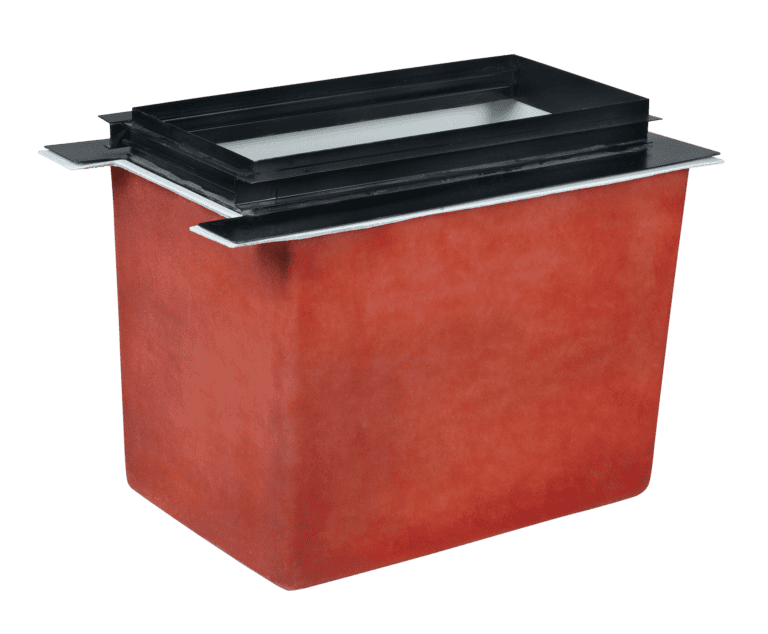

CLE/CLS Series

PCI’s CLE / CLS dispenser sumps offer quality and dependability in a fiberglass constructed body with a heavy gauge steel frame. It is also available with a dual compartment for DEF in our DEF series.

5-Product Entries
Extra long sump wall has room for up to five product entries.

Heavy-Gauge Steel Frame
The dispenser sump frame is manufactured from heavy gauge steel, providing strength and rigidity, and is designed to lock into the concrete foundation.

Single Conduitless Entry
Conduit is allowed to enter into the bottom of the dispenser without penetrating the sump walls. Less entries require less penetration fittings and provide less risk for water intrusion.

Nestable
Multiple sumps can be stacked and nested together to significantly reduce shipping costs and simplify inventory by storing more sumps on less pallets.

Standard Features

100% Fiberglass

100% high-quality, non-corrosive fiberglass provides long-term reliable containment from fuel exposure without voiding warranty, warping, cracking or becoming brittle.

Duo-Molded Technology

Our fiberglass sumps utilizes Duo-Molded Technology. Using premium raw materials with a high glass content, we create two layers of fiberglass, offering superior strength and fuel resistance.

Brite-White Interior

Our signature ‘Brite-White’ interior reflects light for better visibility and makes identifying leak points easier.

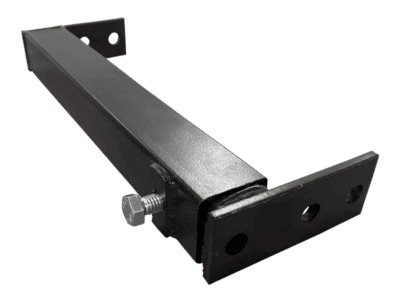

Universal Stabilizer Bars

Universal stabilizer bars with 3-axis adjustment accommodate multi-product dispensers without displacing product lines and ensure proper load transfer in case of an impact from any direction.

Single Piece Construction

Constructed as a single piece which eliminates any seams, providing less places for water penetration.

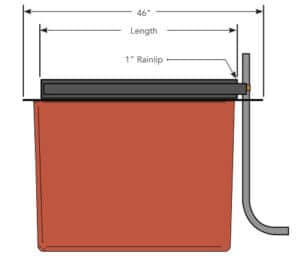

1" Composite Rainlip

1″ Composite Rainlip protrudes from the bottom of the dispenser to prevent surface water from entering the sump. This also offers better protection against rust and corrosion than metallic rainlips.

Optional Features

Double Wall Options Available

Available in double wall for a variety of monitoring options to satisfy local regulations and requirements. From dry fluid or fluid filled interstitial to vacuum interstice monitoring, PCI has all options to best fit your installation and compliance needs.

Pre-Plumbed Service

PCI’s Dispenser Sumps are available with completely customizable pre-plumb service built to customer’s specifications. Our pre-plumb dispenser sumps include all internal piping from the shear valve to penetration, eliminating the need for any additional field labor.

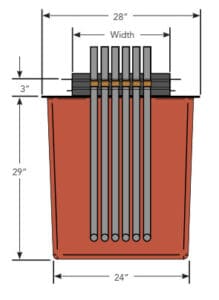

Dispenser	Single Wall	Double Wall	Width	Length	Stabilizer Kit
Bennett Pacific	CLE 146390B	CLEDW 146390B	14.75″	39″	SVU-L
Bennett 3000	CLS 120206	CLSDW 120206	12″	20.75″	SVU-S
Gasboy Atlas	CLS 120206A	CLSDW 120206A	12″	20.75″	SVU-S
Gilbarco Encore	CLE 174375	CLEDW 174375	17.5″	37.5″	SVU-L
Gilbarco Legacy	CLS 120206X	CLSDW 120206X	12″	20.75″	SVU-S
Wayne Century	CLE 154260	CLEDW 154260	15.5″	26″	SVU-L
Wayne Reliance	CLS 154260R	CLSDW 154260R	15.5″	26″	SVU-L
Wayne Select	CLS 154260	CLSDW 154260	15.5″	26″	SVU-L
Wayne Ovation	CLE 146390	CLEDW 146390	14.75″	39″	SVU-L
Wayne Vista (UHC) HS3, HS4	CLS 154294	CLSDW 154294	15.5″	29.5″	SVU-L
Wayne Vista 48″	CLS 154294	CLSDW 154294	11.25″	37.5″	SVU-S
Wayne Helix 36″	CLS 170260	CLSDW 170260	17″	26″	SVU-L
Wayne Helix 48″	CLE 170365	CLEDW 170365	17″	36.625″	SVU-L

Additional Double Wall Accessories (Ordered Separately)

Part No.	Description
EQP-DW-VAC	Vacuum Kit (Required for all Double Wall Sumps)
EQP-IF-5GAL	Interstitial Fluid, 5 Gallons (Required for Double Wall Sumps with Fluid Filled Interstice)
EQP-IF-ADP-UC	Interstitial Fluid Adapter Kit ( 1 Per Sump, Required for Double Wall Dispenser & Grade Level Transition Sumps with Fluid Filled Interstice)

Additional Models Available

Click to enlarge

Installation Video

Downloads

Brochure Installation Instructions

Approvals

UL® Listed 2447

California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)

State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
