DP Series

The DP (Dispenser Pan) Series Dispenser Sumps are the most affordable fiberglass dispenser sump on the market. The is the shallowest dispenser sump PCI manufactures that can still accommodate a flex connector.

Shallow Burial Depth
Shallowest dispenser sump that PCI manufactures, that can still accommodate a flex connector

Dual-Conduitless Entry
Conduit mounting channel is engineered directly into both ends of the steel frame to allow electrical entry in the bottom of the dispenser without penetrating the sump wall.

Standard Features

100% Fiberglass

100% high-quality, non-corrosive fiberglass provides long-term reliable containment from fuel exposure without voiding warranty, warping, cracking or becoming brittle.

Duo-Molded Technology

Our fiberglass sumps utilizes Duo-Molded Technology. Using premium raw materials with a high glass content, we create two layers of fiberglass, offering superior strength and fuel resistance.

Brite-White Interior

Our signature ‘Brite-White’ interior reflects light for better visibility and makes identifying leak points easier.

Universal Stabilizer Bars

Universal stabilizer bars with 3-axis adjustment accommodate multi-product dispensers without displacing product lines and ensure proper load transfer in case of an impact from any direction.

Single Piece Construction

Constructed as a single piece which eliminates any seams, providing less places for water penetration.

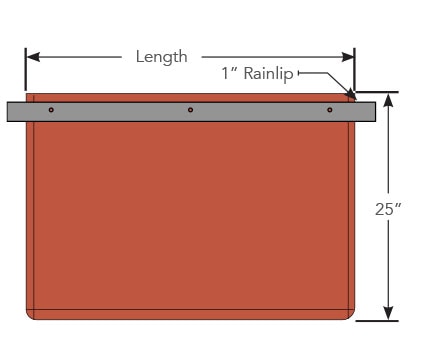

1" Composite Rainlip

1″ Composite Rainlip protrudes from the bottom of the dispenser to prevent surface water from entering the sump. This also offers better protection against rust and corrosion than metallic rainlips.

Optional Features

Double Wall Options Available

Available in double wall for a variety of monitoring options to satisfy local regulations and requirements. From dry fluid or fluid filled interstitial to vacuum interstice monitoring, PCI has all options to best fit your installation and compliance needs.

Pre-Plumbed Service

PCI’s Dispenser Sumps are available with completely customizable pre-plumb service built to customer’s specifications. Our pre-plumb dispenser sumps include all internal piping from the shear valve to penetration, eliminating the need for any additional field labor.

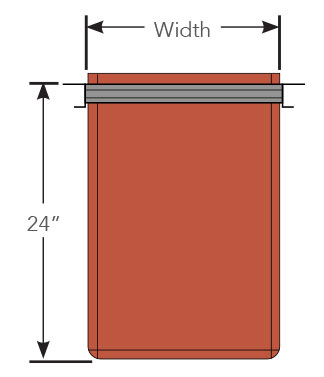

Dispenser	Single Wall	Double Wall	Width	Length	Stabilizer Kit
Gilbarco Encore	DP174360	DPDW174360	17.5″	36″	SVU-L
Wayne Ovation	DP146360	DPDW146360	14.75″	36″	SVU-L

Additional Double Wall Accessories (Ordered Separately)

Part No.	Description
EQP-DW-VAC	Vacuum Kit (Required for all Double Wall Sumps)
EQP-IF-5GAL	Interstitial Fluid, 5 Gallons (Required for Double Wall Sumps with Fluid Filled Interstice)
EQP-IF-ADP-UC	Interstitial Fluid Adapter Kit ( 1 Per Sump, Required for Double Wall Dispenser & Grade Level Transition Sumps with Fluid Filled Interstice)

Additional Models Available

Click to enlarge

Downloads

Brochure Installation Instructions

Approvals

UL® Listed 2447

California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)

State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
