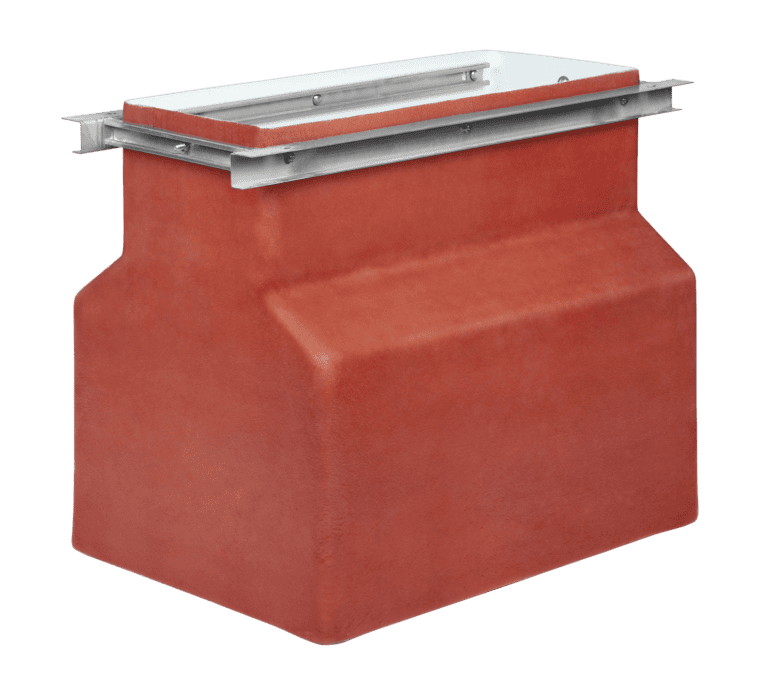

RSC Series

PCI’s RSC (Reduced Steel Conduitless) dispenser sump offers our quality fiberglass in a cost-effective design. Our reduced galvanized steel frame offers excellent corrosion resistance.

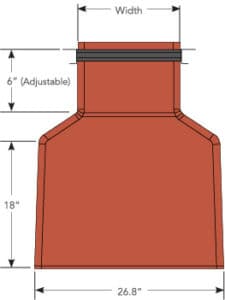

Adjustable Height
Designed and engineered to allow up to 6” of field adjustment helps ensure proper slope once penetration fittings have been installed off location.

Wide Body Design
Allows ample space for up to 4 Pass-Thru plumbing configurations in a single sump while our tapered top fits inside the most narrow island forms.

Dual-Conduitless Entry
Conduit mounting channel is engineered directly into both ends of the steel frame to allow electrical entry in the bottom of the dispenser without penetrating the sump wall.

Standard Features

100% Fiberglass

100% high-quality, non-corrosive fiberglass provides long-term reliable containment from fuel exposure without voiding warranty, warping, cracking or becoming brittle.

Duo-Molded Technology

Our fiberglass sumps utilizes Duo-Molded Technology. Using premium raw materials with a high glass content, we create two layers of fiberglass, offering superior strength and fuel resistance.

Brite-White Interior

Our signature ‘Brite-White’ interior reflects light for better visibility and makes identifying leak points easier.

Universal Stabilizer Bars

Universal stabilizer bars with 3-axis adjustment accommodate multi-product dispensers without displacing product lines and ensure proper load transfer in case of an impact from any direction.

Single Piece Construction

Constructed as a single piece which eliminates any seams, providing less places for water penetration.

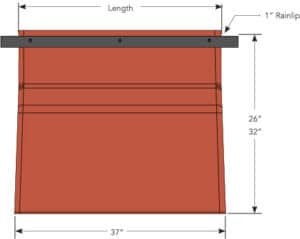

1" Composite Rainlip

1″ Composite Rainlip protrudes from the bottom of the dispenser to prevent surface water from entering the sump. This also offers better protection against rust and corrosion than metallic rainlips.

Optional Features

Double Wall Options Available

Available in double wall for a variety of monitoring options to satisfy local regulations and requirements. From dry fluid or fluid filled interstitial to vacuum interstice monitoring, PCI has all options to best fit your installation and compliance needs.

Pre-Plumbed Service

PCI’s Dispenser Sumps are available with completely customizable pre-plumb service built to customer’s specifications. Our pre-plumb dispenser sumps include all internal piping from the shear valve to penetration, eliminating the need for any additional field labor.

Dispenser	Single Wall	Double Wall	Width	Length	Stabilizer Kit
Bennett Pacific	RSC 146360B	RSCDW 146360B	14.75″	36″	SVU-L
Bennett 3000	RSC 120206	RSCDW 120206	12″	20.75″	SVU-S
Gasboy Atlas	RSC 120206A	RSCDW 120206A	12″	20.75″	SVU-S
Gilbarco Encore	RSC 174360	RSCDW 174360	17.5″	36″	SVU-L
Gilbarco Legacy	RSC 120206X	RSCDW 120206X	12″	20.75″	SVU-S
Wayne Century	RSC 154260	RSCDW 154260	15.5″	26″	SVU-L
Wayne Reliance	RSC 154260	RSCDW 154260	15.5″	26″	SVU-L
Wayne Select	RSC 154260	RSCDW 154260	15.5″	26″	SVU-L
Wayne Ovation	RSC 146360	RSCDW 146360	14.75″	36″	SVU-L
Wayne Vista (UHC) HS3, HS4	RSC 154260HV	RSCDW 154260HV	15.5″	26″	SVU-L
Wayne Vista 48″	RSC 112360	RSCDW 112360	11.25″	36″	SVU-S

Additional Double Wall Accessories (Ordered Separately

Part No.	Description
EQP-DW-VAC	Vacuum Kit (Required for all Double Wall Sumps)
EQP-IF-5GAL	Interstitial Fluid, 5 Gallons (Required for Double Wall Sumps with Fluid Filled Interstice)
EQP-IF-ADP-UC	Interstitial Fluid Adapter Kit ( 1 Per Sump, Required for Double Wall Dispenser & Grade Level Transition Sumps with Fluid Filled Interstice)

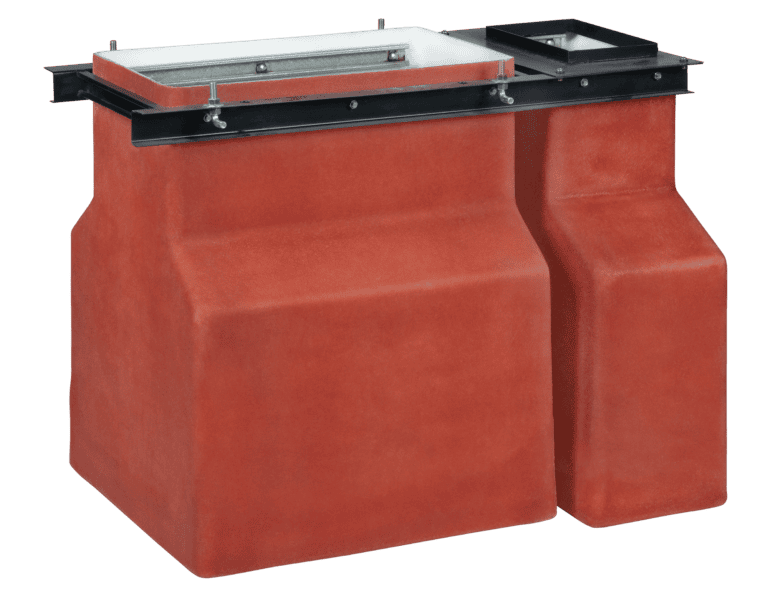

Additional Models Available

Click to enlarge

Installation Video

Downloads

Brochure Installation Instructions

Approvals

UL® Listed 2447

California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)

State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
