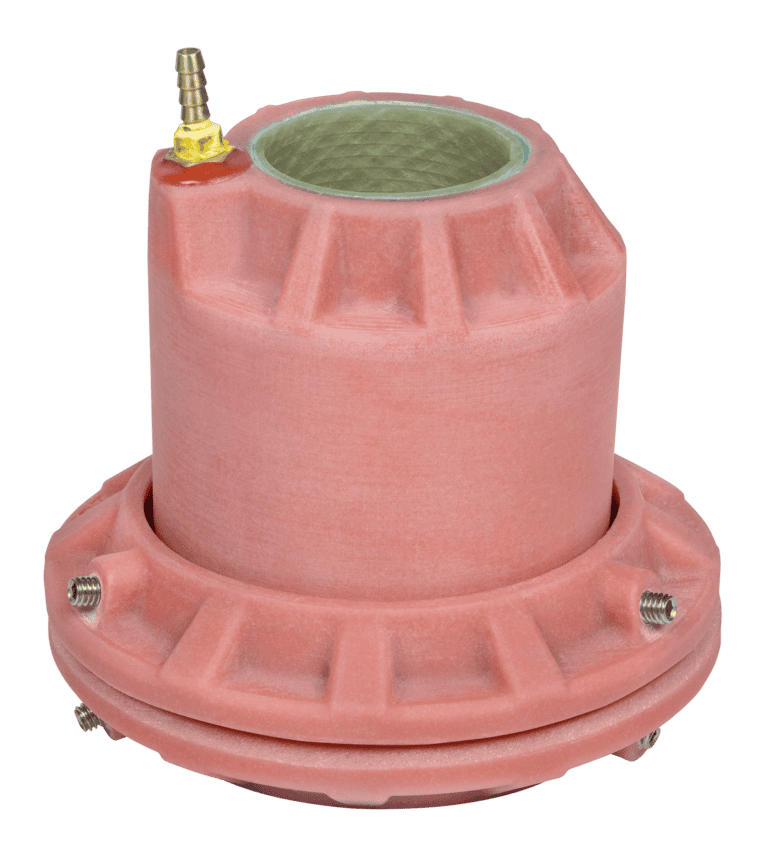

TPT Series
New Construction Penetration Fitting
The TPT New Construction Fitting brings both convenience and innovation to make installation simple and permanent.
Integrated Test Port
Integrated test port eliminates the need for a separate test boot – saving time, money and space in an already crowded containment sump.
Standard Features
Long-Term Solution
100% fiberglass construction provides superior strength and ensures the fitting will withstand long-term exposure to all fuels, including ethanol.
Allows for Misalignment
Works with angled pipe entries up to 10° for job site adaptability allowing room for misalignment.
Cost Effective
PCI’s penetration fittings are the most affordable fiberglass fittings on the market, with a similar cost to rubber or plastic fittings.
Optional Features
EP2A Epoxy Bonding
EP2A is two-part epoxy available to bond fiberglass penetration fittings to fiberglass and steel. Due to its thickened consistency, It has great gap filling properties and excellent sag resistance, making it a simple and dependable bonding solution.

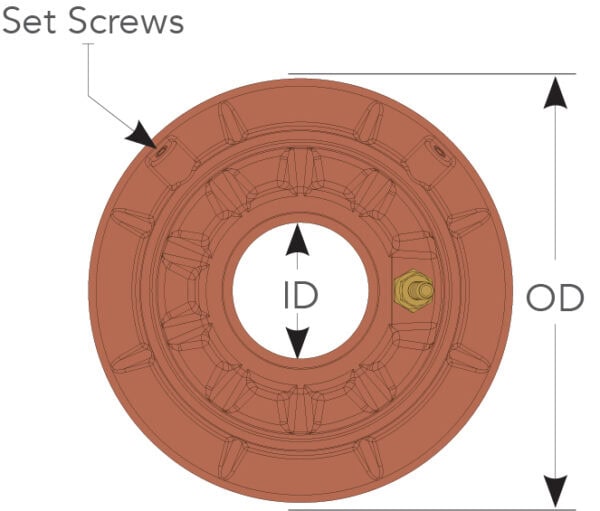

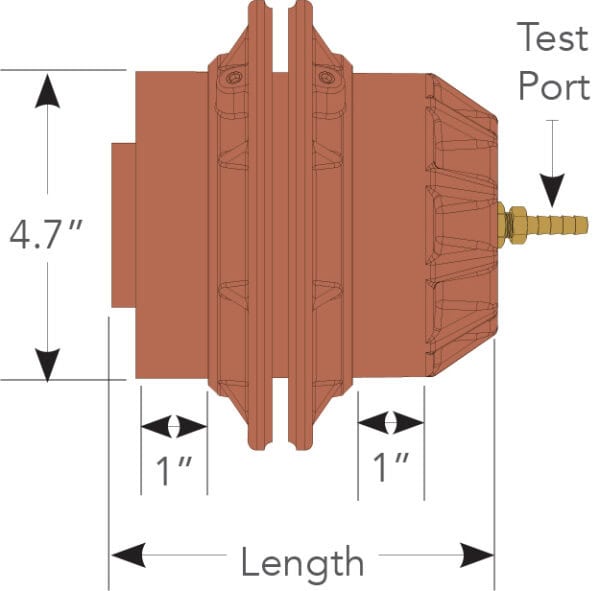

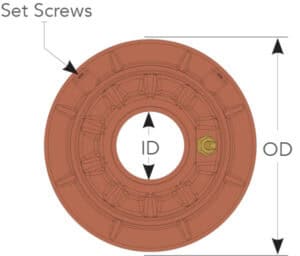

| Part No. | Install | Pipe | Length | ID | OD |
|---|---|---|---|---|---|
| PF-TPT-2F-32 | Flat Wall | 3″ x 2″ RTIIA | 6″ | 2.4″ | 7″ |
| PF-TPT-2F-43 | Flat Wall | 4″ x 3″ RTIIA | 6″ | 3.8″ | 7.8″ |
| PF-TPT-2F-64 | Flat Wall | 6″ x 4″ RTIIA | 8.5″ | 4.8″ | 10″ |
| PF-TPT-2F-L2* | Flat Wall | 2″ LCX | 6″ | 2.4″ | 7″ |
| PF-TPT-2F-L3* | Flat Wall | 3″ LCX | 6″ | 3.8″ | 7.8″ |
| PF-TPT-2F-L4* | Flat Wall | 4″ LCX | 8.5″ | 4.8″ | 10.8″ |
*LCX adapter included
Click to enlarge
Installation Video
Downloads
Approvals
UL® Listed 2447
California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)
State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
