4200 Series - Solid Bottom

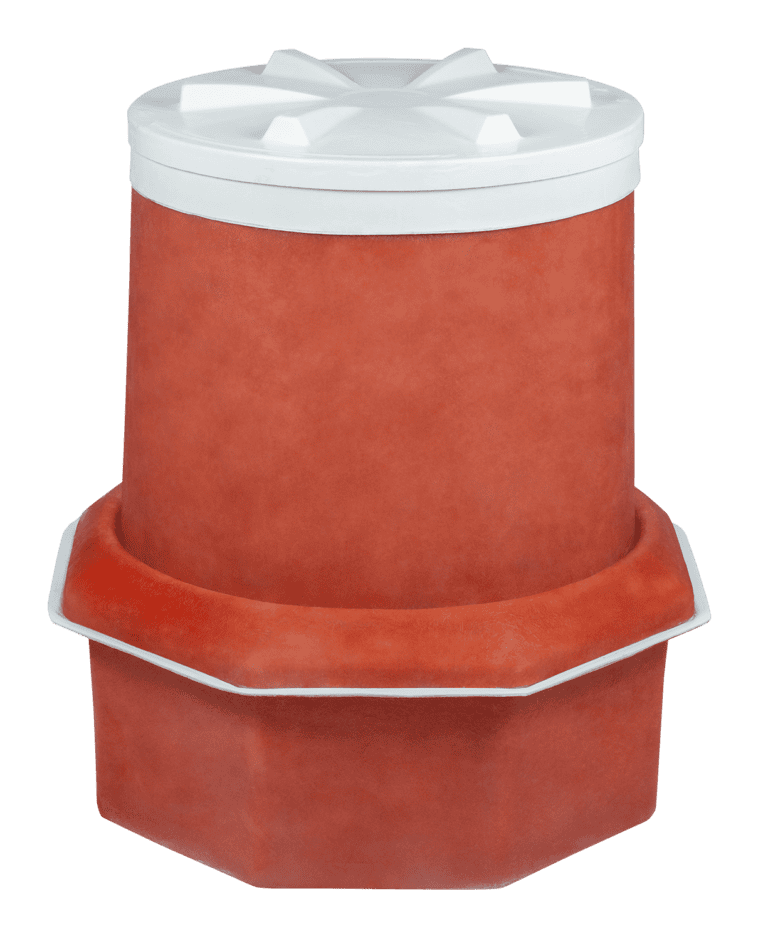

The 4200 Series Tank Sump is a cost-effective fiberglass alternative to polyethylene tank sumps. Fiberglass construction guarantees long-term reliability without deforming or cracking.
Nestable
Multiple sumps can be stacked and nested together to significantly reduce shipping costs by storing more sumps on less pallets.
Retrofit Installation
Available in most common sizes for retrofit applications.
Octagon Base
The octagon base provides flat sealing surfaces for 45 and 90 degree penetrations.
Standard Features
100% Fiberglass
Duo-Molded Technology
Brite-White Interior
Twist-Lok Access Cover

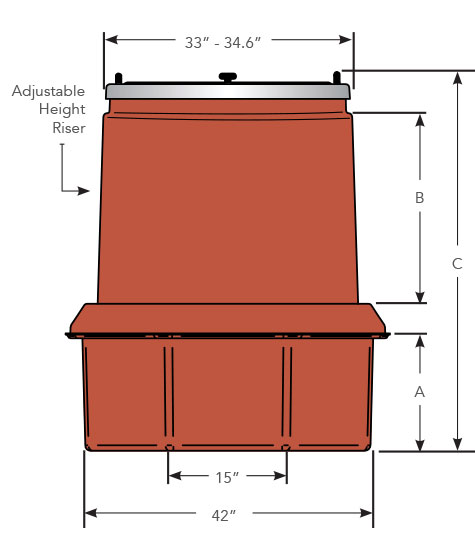

| Part No. | Base Height (A) | Adjustable Height (B) | Overall Height (C) |
|---|---|---|---|
| PC4224 | 15″ | N/A | 24″ Fixed |
| PC4230** | 15″ | 10″ | 24″ – 30″ |
| PC4240 | 15″ | 19″ | 29″ – 39″ |
| PC4250 | 15″ | 31″ | 29″ – 51″ |
| Options (Example: PC4224-CB0) | |||
| -3B0 | Twist-Lok Lid, No Bonding Kit | ||
| -3B1 | Twist-Lok Lid, Epoxy Bonding Kit | ||
| -3B4 | Twist-Lok Lid, Fiberglass Bonding Kits | ||
| Accessories | |||
| TSA400 | 4″ Tank Sump Adapter | 11.1″OD | |
| IP4000-1 | 4″ Inspection Port for Twist-Lok Lid | ||
Optimum lid height is 4″ below manhole cover
Not for use with 42″ Tank Collar

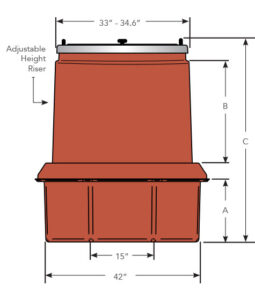

Click to enlarge
Downloads
Approvals
UL® Listed 2447
California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)
State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
