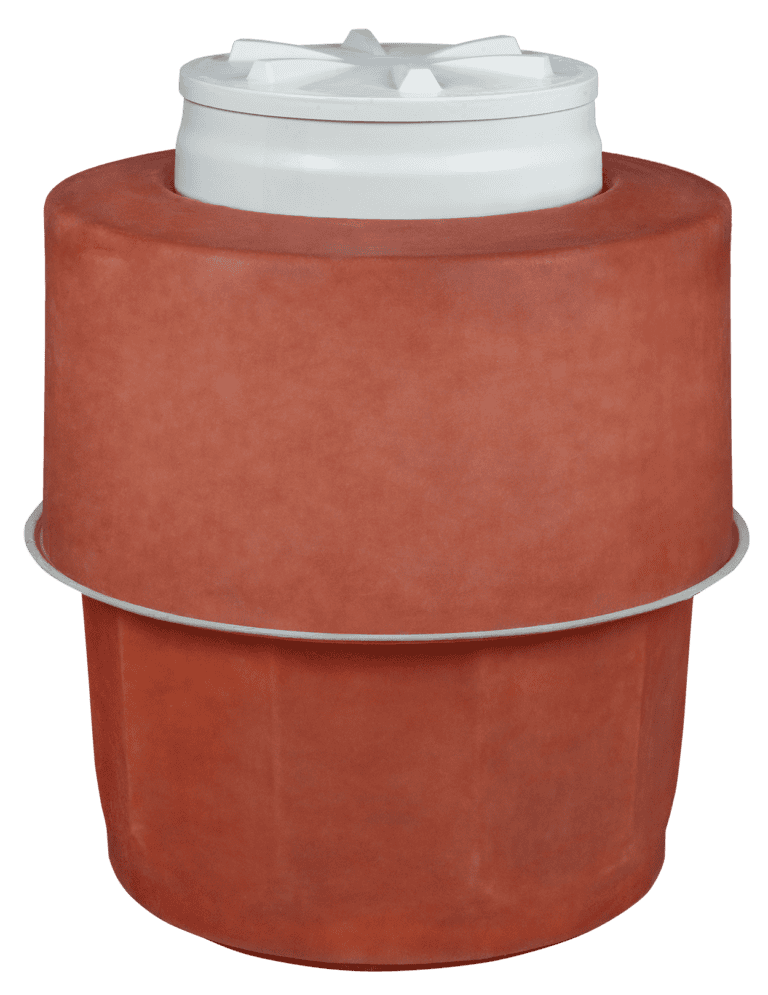

4800 Series
The 4800 Series fiberglass tank sump is the largest piping sump in the industry. Designed to accommodate dual STP systems for all types of installations including collar mount, bung mount and manways.
Universal Base
Collar mount, solid bottom and universal bottom bases are available for all three types of installations – collar mount, bung mount and manways. Can be factory cut.
Dual STP System
Accommodates two STP systems with ample room to work.
58” Diameter Riser
Widest riser in the industry provides ample room for installation and service work.
Standard Features
100% Fiberglass
Duo-Molded Technology
Brite-White Interior
Twist-Lok Access Cover

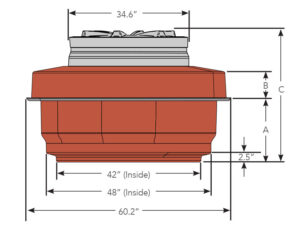

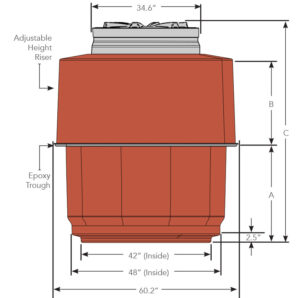

| Part No. | Base Height (A) | Adjustable Height (B) | Overall Height (C) |
|---|---|---|---|
| PC4840U | 19″ | 0″ – 8″ | 32″ – 40″ |
| PC4852U | 32″ | 0″ – 8″ | 44″ – 52″ |
| PC4860U | 19″ | 0″ – 28″ | 32″ – 60″ |
| PC4872U | 32″ | 0″ – 28″ | 44″ – 72″ |
| Options (Example: PC4852U-3B1) | |||
| -3B0 | Solid Bottom, No Bonding Kit | ||
| -3B1 | Solid Bottom, E148CM Epoxy Kit | ||
| -3B2 | Solid Bottom, (x2) E148CM Epoxy Kit | ||
| -3C0 | 42″ Collar Mount, No Bonding Kit** | ||
| -3C2 | 42″ Collar Mount, (x2) E148CM Epoxy Kit** | ||
| -3D0 | 48″ Collar Mount, No Bonding Kit*** | ||
| -3D2 | 48″ Collar Mount, (x2) E148CM Epoxy Kit*** | ||
Optimum lid height is 4″ below manhole cover
*Dimensions are based on Solid Bottom sumps only
**Subtract 1” if mounting to a 42” tank collar
***Subtract 2.5” if mounting to a 48” tank collar
Click to enlarge
Installation Video
Downloads
Approvals
UL® Listed 2447
California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)
State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
