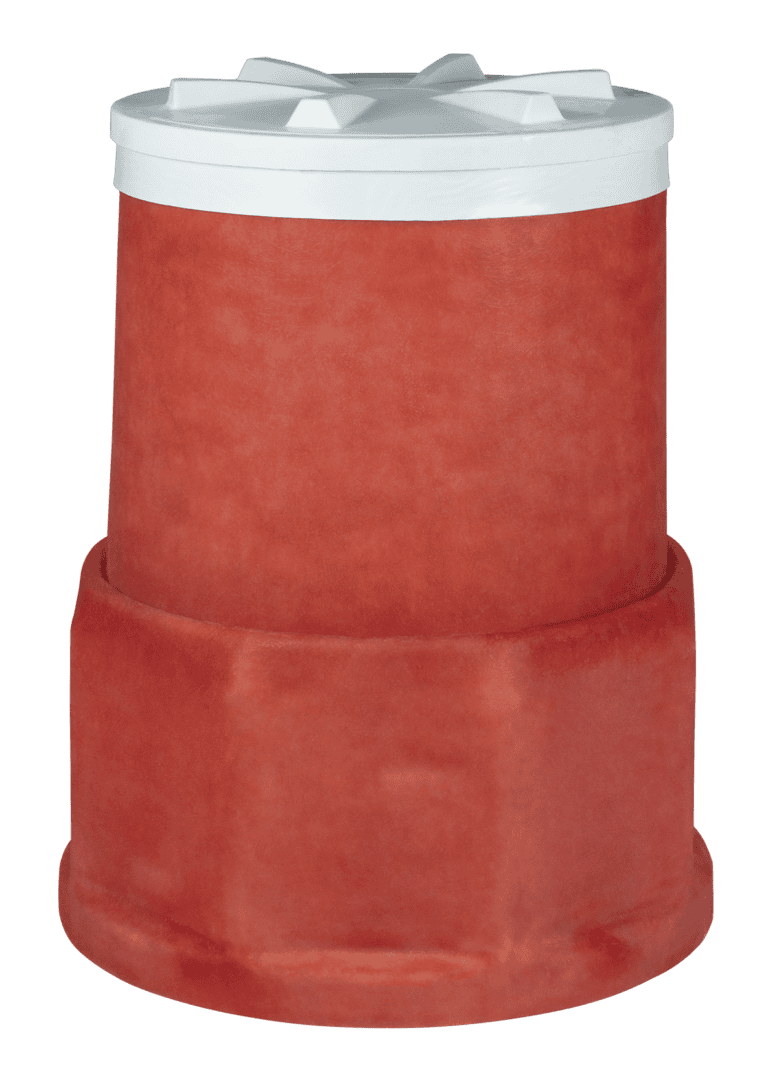

PCM4200 Series - Collar Mount
Mounting a tank sump on a collar is the most highly recommended method of installation, and PCI’s PCM Series is the most economically sized tank sump to get the job done. The PCM4200 series is engineered with the same features and benefits as its larger counterparts.
Cost-Effective
Without compromising quality or functionality, the PCM4200 Series is the most affordable fiberglass sump of its kind on the market and reduces overall installation costs.
Octagon Base
The octagon base provides flat sealing surfaces for 45° and 90° penetrations, allowing for a faster installation using standard penetration and pipe fittings.
Standard Features
100% Fiberglass

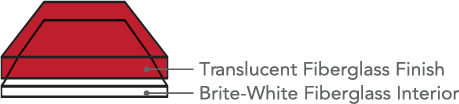

Duo-Molded Technology
Brite-White Interior
Twist-Lok Access Cover

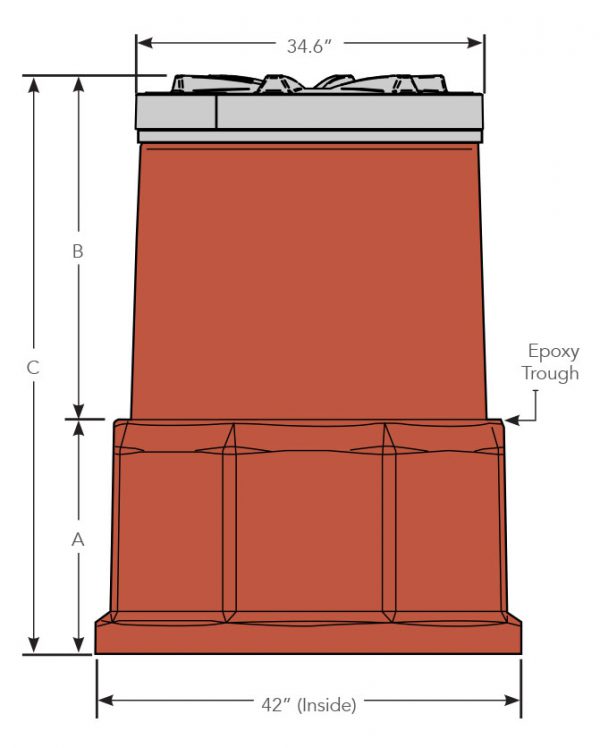

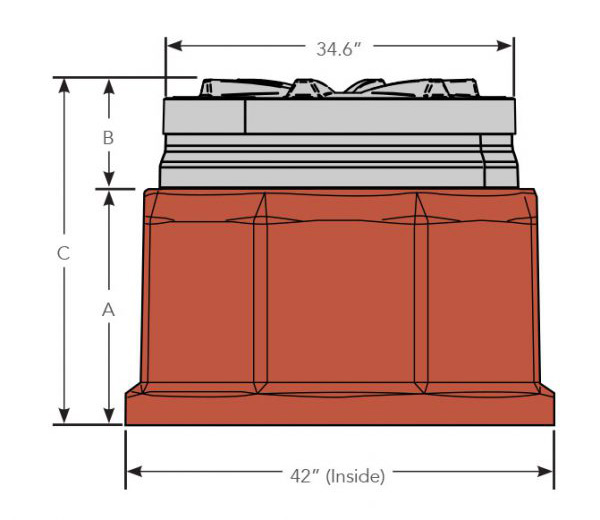

| Part No. | Base Height (A) | Adjustable Height (B) | Overall Height (C) |
|---|---|---|---|
| PCM4233 | 23″ | 6″ – 10″ | 29″ – 33″ |
| PCM4248 | 23″ | 7″ – 25″ | 30″ – 48″ |
| PCM4255 | 23″ | 7″ – 32″ | 30″ – 55″ |
| Options (Example: PCM4248-3C0) | |||
| -3C0 | 42″ Collar Mount, No Bonding Kit | ||
| -3C2 | 42″ Collar Mount, (x2) E148CM Epoxy Kits | ||
Optimum lid height is 4″ below manhole cover

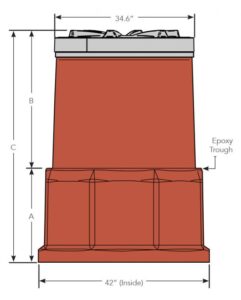

Click to enlarge
Downloads
Approvals
UL® Listed 2447
California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)
State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
