Tank Collars

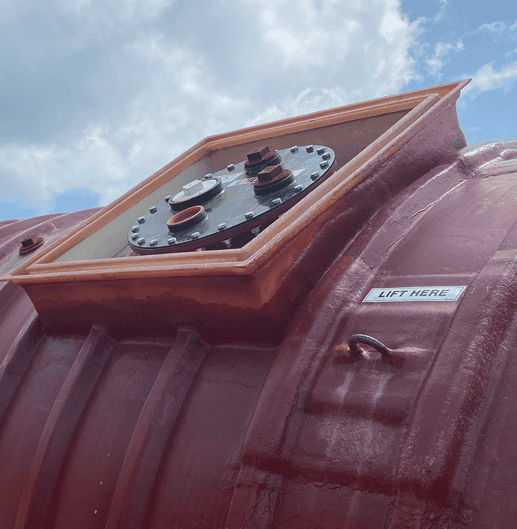

Fiberglass tank collars are the most reliable method of tank sump installation. Their rigid construction from UL listed isophthalic fiberglass will provide a sturdy mount while personnel enter and exit the tank sump.
Precut – Easy Installation
Precut for easy installation to fit directly onto 4’, 5’, 6’, 7’, 8’, 10’ and 12’ diameter tanks without modification.
Universal Design
Tank sumps can be installed with a traditional fiberglass kit or an epoxy kit to make a watertight seal. Collars can be installed directly onto fiberglass, steel and jacketed tanks.

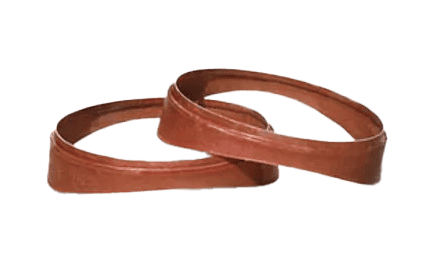

Nestable Design
PCI’s tank collars use a nestable design which reduces shipping and inventory costs.

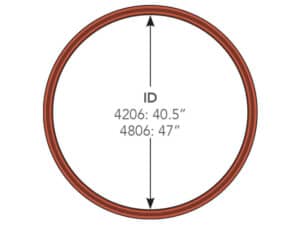

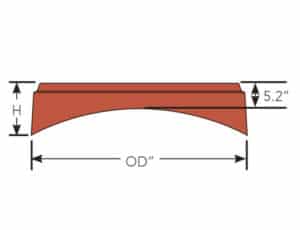

| Single Wall | Double Wall | Description | ID | OD | Height |
|---|---|---|---|---|---|
| 42″ Round Tank Collars | |||||
| 4206CL-5 | CLDW4206-5 | 42″ Tank Collar, Fits 5′ Tanks | 40.5″ | 45.2” | 15.5” |
| 4206CL-6 | CLDW4206-6 | 42″ Tank Collar, Fits 6′ Tanks | 40.5″ | 44.9” | 13.1” |
| 4206CL-7 | CLDW4206-7 | 42″ Tank Collar, Fits 7′ Tanks | 40.5″ | 44.7” | 11.7” |
| 4206CL-8 | CLDW4206-8 | 42″ Tank Collar, Fits 8′ Tanks | 40.5″ | 44.6” | 10.8” |
| 4206CL-9 | CLDW4206-9 | 42″ Tank Collar, Fits 9′ Tanks | 40.5″ | 44.5” | 10.1” |
| 4206CL-10 | CLDW4206-10 | 42″ Tank Collar, Fits 10′ Tanks | 40.5″ | 44.5” | 9.5” |
| 4206CL-12 | CLDW4206-12 | 42″ Tank Collar, Fits 12′ Tanks | 40.5″ | 44.4” | 8.8” |
| 48″ Round Tank Collars | |||||
| 4806CL-5 | CLDW4806-5 | 48″ Tank Collar, Fits 5′ Tanks | 47″ | 51.7” | 20” |
| 4806CL-6 | CLDW4806-6 | 48″ Tank Collar, Fits 6′ Tanks | 47″ | 51.2” | 15.9” |
| 4806CL-7 | CLDW4806-7 | 48″ Tank Collar, Fits 7′ Tanks | 47″ | 51” | 13.9” |
| 4806CL-8 | CLDW4806-8 | 48″ Tank Collar, Fits 8′ Tanks | 47″ | 50.8” | 12.5” |
| 4806CL-9 | CLDW4806-9 | 48″ Tank Collar, Fits 9′ Tanks | 47″ | 50.7” | 11.6” |
| 4806CL-10 | CLDW4806-10 | 48″ Tank Collar, Fits 10′ Tanks | 47″ | 50.6” | 10.9” |
| 4806CL-12 | CLDW4806-12 | 48″ Tank Collar, Fits 12′ Tanks | 47″ | 50.5” | 9.8″ |
| Part No. | Description |
|---|---|

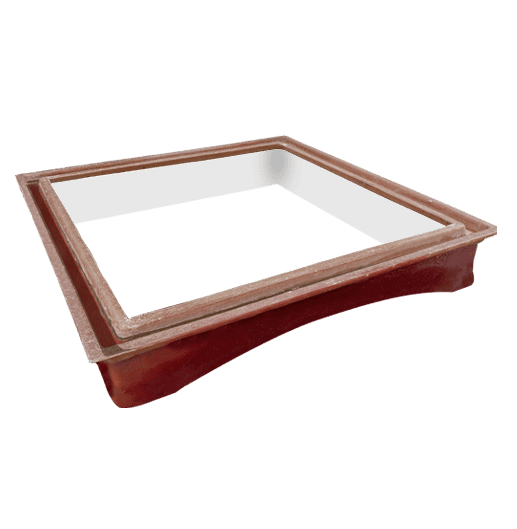

| 42” x 42” Square Collar | |
| CL4242-5 | 42×42” Square Collar, Fits 5′ Tanks |
| CL4242-6 | 42×42” Square Collar, Fits 6′ Tanks |
| CL4242-7 | 42×42” Square Collar, Fits 7′ Tanks |
| CL4242-8 | 42×42” Square Collar, Fits 8′ Tanks |
| CL4242-9 | 42×42” Square Collar, Fits 9′ Tanks |
| CL4242-10 | 42×42” Square Collar, Fits 10′ Tanks |
| CL4242-12 | 42×42” Square Collar, Fits 12′ Tanks |
| 48” x 48” Square Collar | |
| CL4848-5 | 48×48” Square Collar, Fits 5′ Tanks |
| CL4848-6 | 48×48” Square Collar, Fits 6′ Tanks |
| CL4848-7 | 48×48” Square Collar, Fits 7′ Tanks |
| CL4848-8 | 48×48” Square Collar, Fits 8′ Tanks |
| CL4848-9 | 48×48” Square Collar, Fits 9′ Tanks |
| CL4848-10 | 48×48” Square Collar, Fits 10′ Tanks |
| CL4848-12 | 48×48” Square Collar, Fits 12′ Tanks |
Click to enlarge
Installation Video
Downloads
Approvals
UL® Listed 2447
California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)
State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
