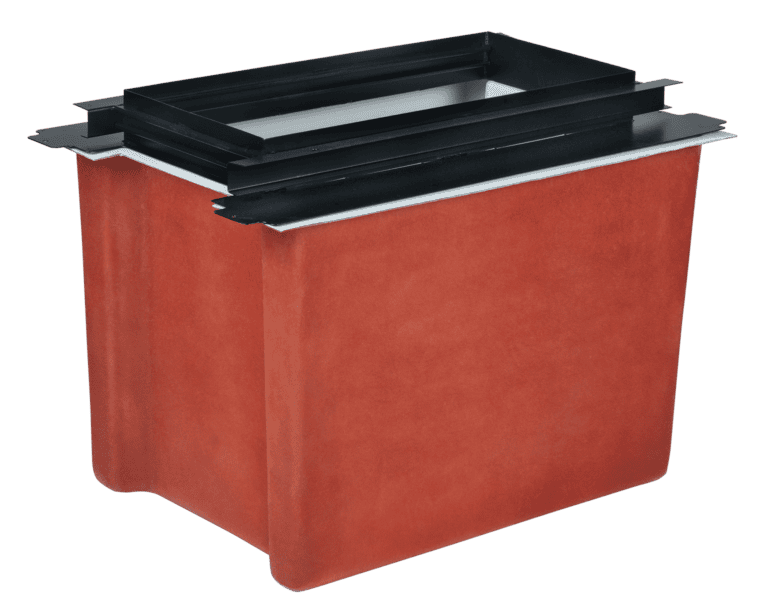

DCL Series
The DCL Series sumps are engineered with intent and offer a watertight solution. Its double conduitless design eliminates unnecessary penetrations by allowing electrical conduits to enter into the dispenser at both ends without penetrating the sump walls.
5-Product Entries
Extra long sump wall has room for up to five product entries.
Heavy-Gauge Steel Frames
The dispenser sump frame is manufactured from heavy gauge steel, providing strength and rigidity, and is designed to lock into the concrete foundation.
Double Conduitless Entry
Electrical Conduit can enter the dispenser without penetrating the sump walls, creating less risk for water intrusion
Optional Features
Double Wall Options Available
Pre-Plumbed Service

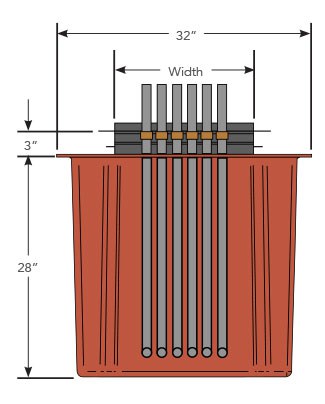

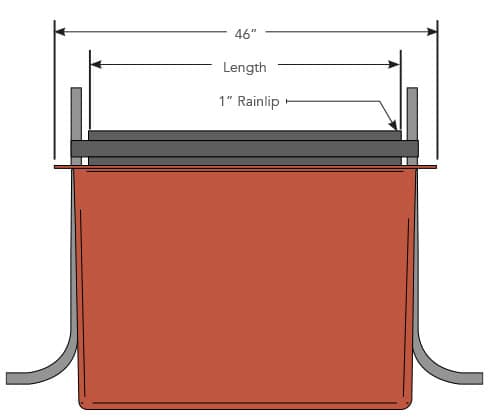

| Dispenser | Single Wall | Double Wall | Width | Length | Stabilizer Kit |
|---|---|---|---|---|---|
| Bennett Pacific | DCL 146360B | DCLDW 146360B | 14.75″ | 36″ | SVU-C |
| Gilbarco Encore | DCL 174360 | DCLDW 174360 | 17.5″ | 36″ | SVU-C |
| Wayne Helix 48″ | DCL 170360 | DCLDW 170360 | 17″ | 36″ | SVU-C |
| Wayne Ovation | DCL 146360 | DCLDW 146360 | 14.75″ | 36″ | SVU-C |
| Wayne Vista 48″ | DCL 112360 | DCLDW 112360 | 11.25″ | 36″ | SVU-S |
Additional Double Wall Accessories (Ordered Separately)
| Part No. | Description |
|---|---|
| EQP-DW-VAC | Vacuum Kit (Required for all Double Wall Sumps) |
| EQP-IF-5GAL | Interstitial Fluid, 5 Gallons (Required for Double Wall Sumps with Fluid Filled Interstice) |
| EQP-IF-ADP-UC | Interstitial Fluid Adapter Kit ( 1 Per Sump, Required for Double Wall Dispenser & Grade Level Transition Sumps with Fluid Filled Interstice) |
Additional Models Available
Click to enlarge
Installation Video
Downloads
Approvals
UL® Listed 2447
California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)
State of Floria Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
